Outdoor armored fiber cable

TPU 2 Core Tactical Fiber Optic Cable

Price：Negotiable

Inquiry

Email:sales@hhdfiber.com

TPU 2 Core Tactical Fiber Optic Cable

The TPU 2 Core Tactical Fiber Optic Cable is a rugged 2-fiber outdoor armored cable designed for repeated deployment, retrieval and temporary optical links.

A black TPU jacket provides flexibility and abrasion resistance, while flexible stainless steel armor adds mechanical protection for demanding field use. The cable is available as bulk cable or as a factory pre-terminated tactical fiber cable assembly with connectors selected for the required equipment interface.

Typical applications include emergency restoration, live events, broadcast, industrial communications, outdoor CCTV, field deployment and mobile network links.

The TPU 2 Core Tactical Fiber Optic Cable is designed for rugged environments, offering superior durability and flexibility. Perfect for military, industrial, and outdoor applications, this lightweight cable features two core fibers for optimal signal transmission, ensuring high-speed data transfer and reliability. With its robust construction, it can withstand extreme conditions while maintaining performance, making it an ideal choice for tactical operations and telecommunications.

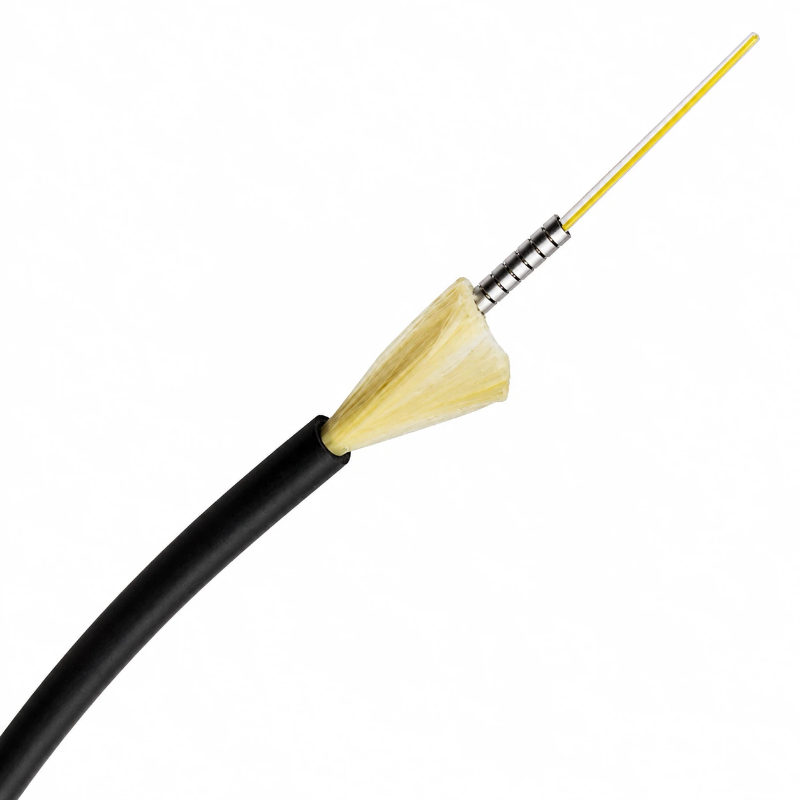

Tactical ofc cable Structures (2f,4f,8f,12f)

2 Core Tactical Fiber Cable Structures: 2F, 4F, 8F and 12F

2 Core Tactical Fiber Cable Specifications

Parameter	Specification
Cable Type	TPU 2 Core Tactical Fiber Optic Cable
Cable Count	2 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
Fiber Type	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.0 ± 0.1 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600 N (Short-Term)
Tensile Strength	≥ 300 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
Bending Radius	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
Attenuation	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
Bandwidth	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, expanded beam connectors, J599 circular connectors and selected field-deployable connector systems
Cable Weight	20.5kg/km

*Cable Jacket:Black TPU

*Cable OD:4.0mm

*Special Application:Outdoor Emergency,Live,Field,Military

*Box Size:46*46*47.Weight:22kgs/CTN,Length:1km/Roll

*20GP container:about 260CTNS

TPU armored fiber optic cable stands out as the optimal choice for tactical needs—and this isn’t just our view. Time and again, our clients’ real-world usage has proven it true.

Live Event, Broadcast & AV Field Deployment

This tactical fiber cable is designed for fast, repeatable deployment in live-event, broadcast and AV-rental environments. It provides a rugged duplex fiber link between field equipment, remote camera positions, OB vans, flypacks and portable production systems.

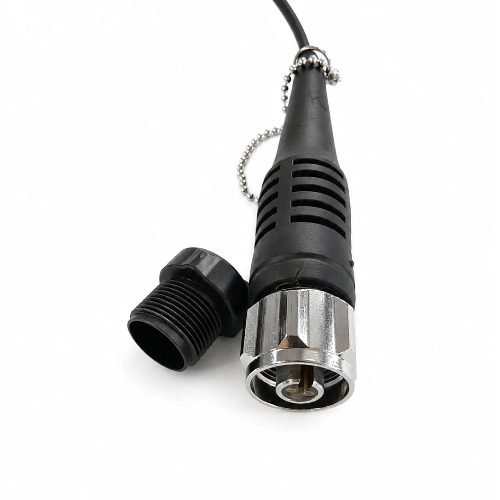

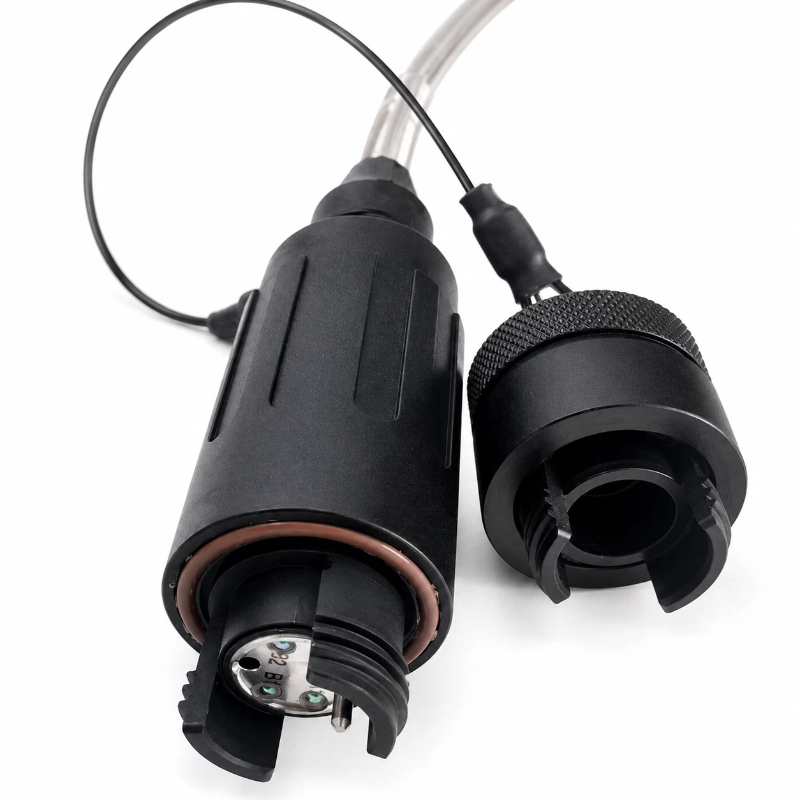

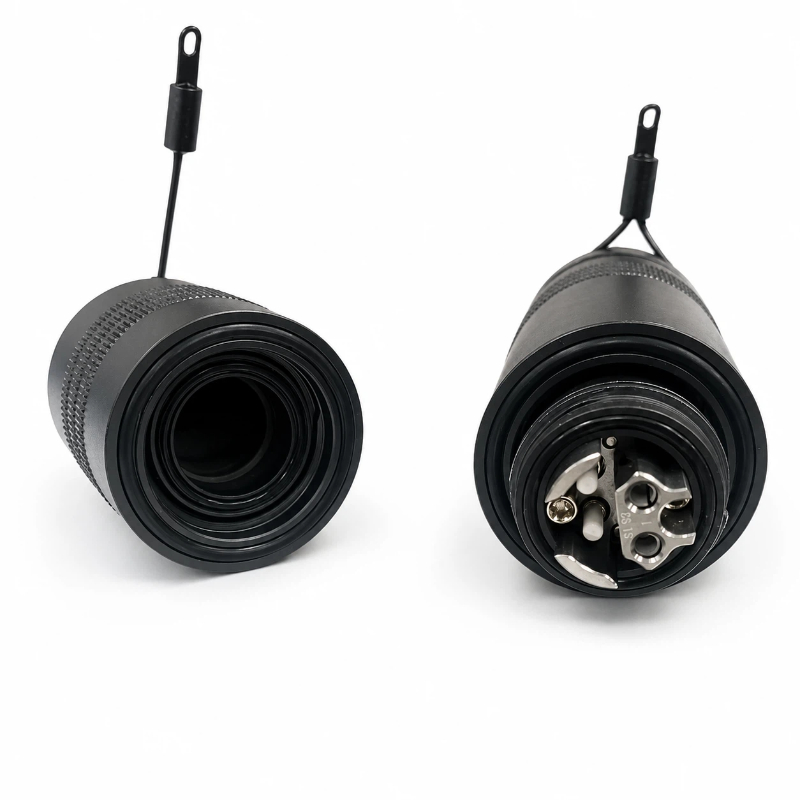

End-A and End-B connectors can be factory pre-terminated to match the required equipment interface. Available options include expanded beam connectors, J599 circular connectors, LC, SC, ST, FC and other specified field-deployable connector systems.

Typical uses include:

* Outdoor live broadcast and individual camera links within multi-camera production for sports, concerts and music festivals
* OB vans, portable production units (PPUs), flypacks and camera-system rental fleets
* Stage, lighting, audio, LED-wall and event AV technical services
* Temporary event internet access, venue backbone links and video-signal transport
* Corporate events, hybrid meetings, live streaming and temporary production
* Broadcast-connectivity distributors serving the SMPTE camera-fiber, opticalCON® and other professional fiber-connectivity markets

Built for Live Production Pressure

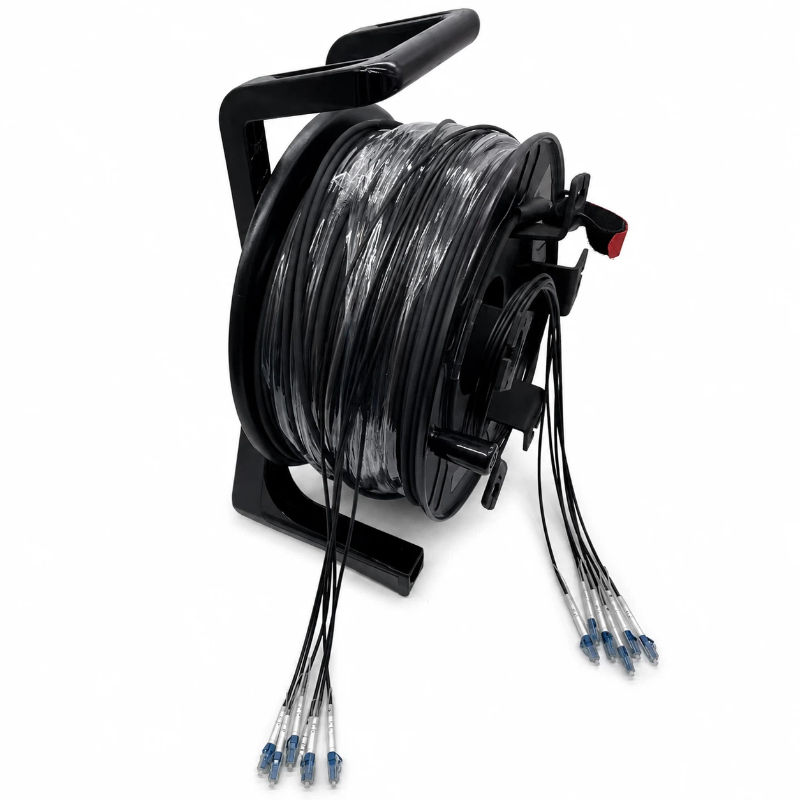

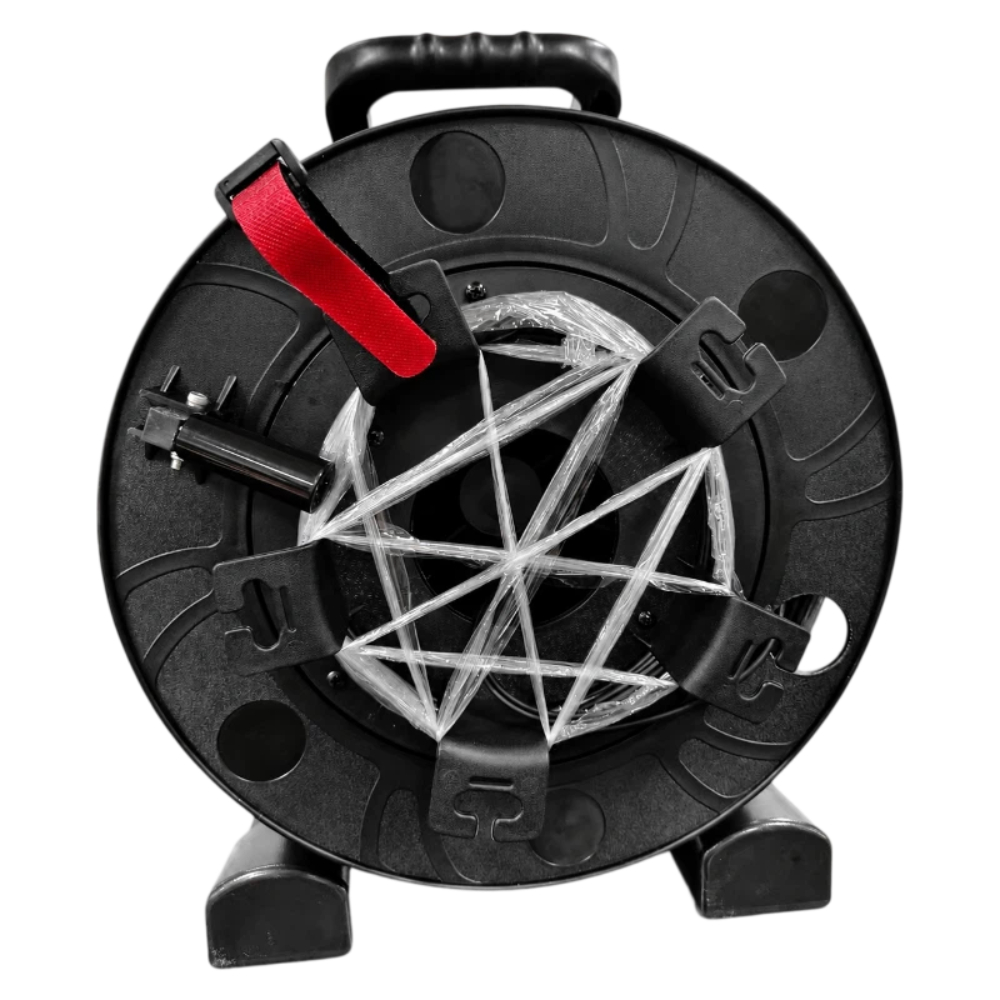

At a live event, a cable failure can disrupt programme feeds, camera links or venue connectivity. This pre-terminated tactical fiber cable helps crews deploy quickly, pay out and retrieve the cable repeatedly on a reel, and standardize cable and connector configurations across rental fleets.

Keeping matched spare assemblies makes replacement faster when a cable is damaged or an urgent project is added. Please provide the required cable length, fiber type and connector configuration so we can assess priority production, replacement or repair options.
