Expanded Beam Cable｜Expanded Beam Tactical Fiber Cable

4.0mm-6.0mm Outdoor Armored Fiber Cable | Flexible Stainless-Steel Tactical Fibre

Cable Stucture 1.(2F,4F,8F,12F) with Metal Braidng type.

Cable Stucture 1.(2F,4F,8F,12F) with Metal Braidng type.

Applications

- Outdoor broadcast and live-event fibre links
- Tactical and emergency communication systems
- Temporary field deployment and mobile networks
- CCTV and security communication links
- Metro, rail and transport infrastructure
- Industrial outdoor networks

Key Features

- Flexible stainless-steel armour provides additional protection against crushing, accidental impact, pulling and rodent damage in outdoor and exposed cable routes.
- The outdoor jacket is designed for demanding environmental conditions, including temporary field deployment, moisture, sunlight and changing temperatures. Final jacket material can be selected according to the application.
- Available in 2-core, 4-core, 8-core and 12-core configurations to support outdoor data, CCTV, broadcast, industrial and temporary communication links.
- Combines mechanical protection with the flexibility needed for installation, deployment and recovery, helping reduce the risk of fibre damage during handling.
- Suitable for outdoor backbone links, field networks, transport infrastructure, security systems, industrial sites and locations where standard unarmoured fibre may be vulnerable.

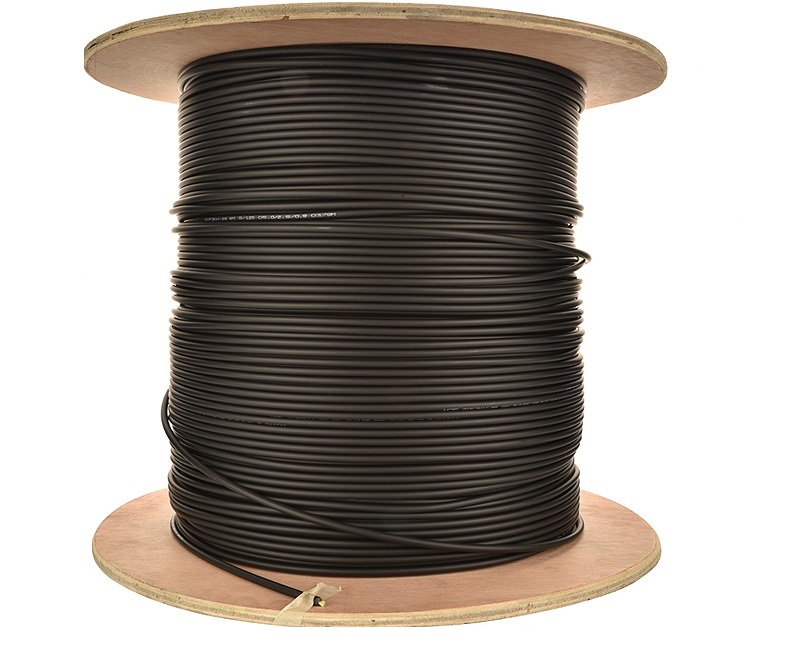

- Available as bulk cable or factory pre-terminated assemblies with custom length, connector type, breakout arrangement, labels and 100% optical testing.

Cable parameters for 2f Tactical Fiber Cable

Parameter	Specification
Fiber Type	Single-Mode (OS2) / Multi-Mode (OM1, OM2, OM3, OM4)
Core Diameter	Single-Mode: 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm
Cable Diameter	4.0mm  ± 0.2
Jacket Material	TPU
Armor Type	Stainless Steel armor
Tensile Strength	≥ 600N (Short-Term)
	≥ 300 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Fire Rating	IEC 60332-1-2 (FlameRetardant)
Water Resistance	|IP67 (Waterproof and Dustproof)
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)
Application	Industrial Networks, Emergency Repairs, Outdoor Deployments

Cable parameters for 2f Tactical Fiber Cable

Parameter	Specification
Cable Type	Outdoor Armored Fiber Optic Cable 4 Core
Cable Count	4 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.5 ± 0.2 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 500 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)
Cable Weight	27.5kg/km

Live Event, Broadcast & AV Field Deployment

This  tactical fiber cable is designed for fast, repeatable deployment European live-event, broadcast and AV-rental environments. It provides a rugged fiber link between field equipment, camera positions, OB vans, flypacks and portable production systems.

Typical uses include:

* Outdoor live broadcast and multi-camera production for sports, concerts and music festivals
* OB vans, portable production units (PPUs), flypacks and camera-system rental fleets
* Stage, lighting, audio, LED wall and event AV technical services
* Temporary event internet access, venue backbone networks and video-signal transport
* Corporate events, hybrid meetings, live streaming and temporary production
* Broadcast-connectivity distributors whose portfolios also serve SMPTE camera-fiber, and other professional fiber-connectivity markets

Built for Live Production Pressure

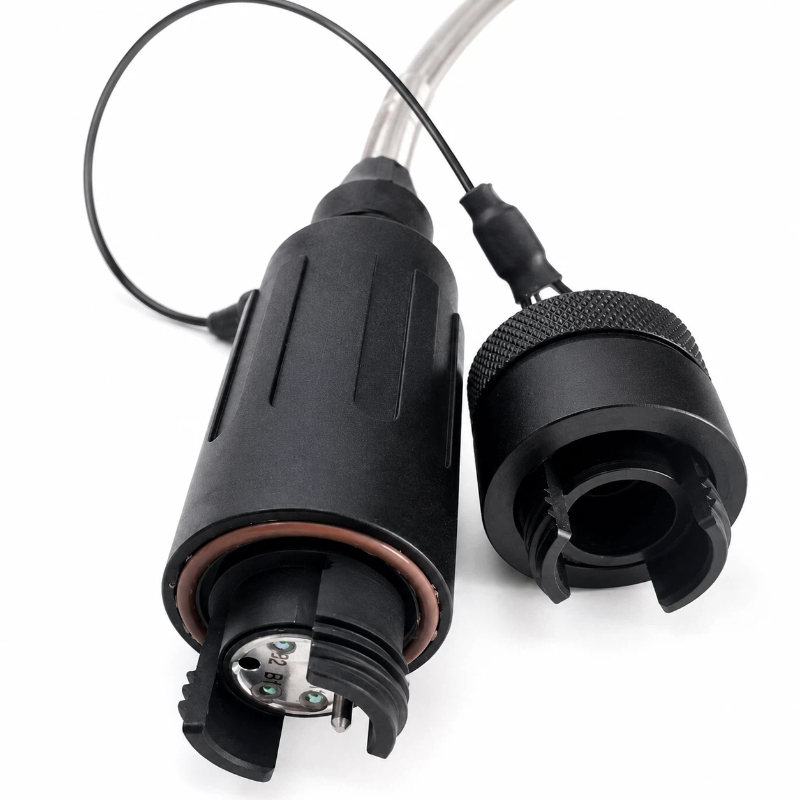

At a live event, a cable failure can interrupt programme feeds, camera links or venue connectivity. This pre-terminated tactical fiber cable helps crews deploy quickly, pay out and retrieve the cable repeatedly on a reel, and standardize spare cable configurations across rental fleets

For urgent requirements, provide the required length, fiber type and connector configuration. We can assess priority production, replacement or repair options for the project.
