4Core Tactical Fiber Cable(tac-4)-TPU Outdoor Armored Fiber Cable

4 core tactical fiber cable’s (tac-4)  with a flexible TPU jacket, Kevlar reinforcement and stainless-steel armor for repeated outdoor deployment, broadcast and emergency links.

Discover the 4 Core Singlemode Outdoor Armored Fiber Optic Cable, featuring a robust black TPU jacket for exceptional durability and high-performance connectivity. Ideal for harsh outdoor environments, this cable ensures reliable data transmission with resistance to elements and mechanical stress. Perfect for Outdoor field,tactical,military,and emergency repair fiber optic solutions. provides abrasion resistance, flexibility and protection against outdoor exposure.

This 4 core tactical fiber cable is designed for repeated deployment, retrieval and reliable communication in demanding outdoor environments. It combines a flexible black TPU jacket, Kevlar reinforcement and spiral stainless-steel armor to provide mechanical protection without making the cable unnecessarily rigid.
The Kevlar yarn carries tensile loads during installation and deployment, while the stainless-steel armor protects the optical fibers against crushing, impact and rodent damage. The TPU outer jacket provides abrasion resistance, flexibility and protection against outdoor exposure.
The cable can be supplied as 1,000-meter bulk cable or manufactured as a factory-pre-terminated tactical fiber cable assembly in customized lengths.

Key Features

* Four optical fibers in one compact cable
* Flexible TPU outer jacket
* Kevlar reinforcement for tensile strength
* Spiral stainless-steel armor for mechanical protection
* Resistant to crushing, abrasion and rodent damage
* Suitable for repeated deployment and retrieval
* OS2 single-mode fiber as standard
* OM3 or OM4 multimode fiber available upon request
* Bulk cable or factory-pre-terminated assemblies
* Custom cable lengths and connector configurations
* Optional cable reel configuration
* Operating temperature from -40°C to +85°C
*Built for Repeated Field Deployment

Temporary fiber links are frequently installed, retrieved and moved between locations. Ordinary installation cable may kink, become damaged or place excessive strain on the optical fibers when repeatedly handled.

This tactical fiber cable uses different protective layers for different purposes:

Kevlar reinforcement: carries pulling and tensile loads.
Spiral stainless-steel armor:protects the fibers from crushing, impact and animal damage.
TPU jacket:provides flexibility, abrasion resistance and outdoor durability.
Optical fibers: provide stable single-mode or multimode transmission.

When used with a correctly sized deployment reel and operated within the specified bending radius, the cable is suitable for repeated field use.

Typical Applications

* Live events, concerts and music festivals
* Outdoor broadcast and remote production
* Camera positions, OB vans, PPUs and flypacks
* Temporary venue and event networks
* Emergency communication and network restoration
* Industrial and harsh-environment fiber links
* Outdoor CCTV and security systems
* Military and field communication projects
* Mobile communication equipment
* Reusable fiber links installed on cable reels
* Bulk Cable and Pre-Terminated Assemblies

The armored tactical fiber cable is available in two supply formats.

Bulk Tactical Fiber Cable

Bulk cable can be supplied on a drum for customers with their own termination capability. Standard bulk packing of up to 1,000 meters per reel is available, subject to the selected cable diameter and production requirements.

Pre-Terminated Tactical Fiber Cable

Factory-pre-terminated assemblies can be manufactured to the required length and connector configuration.
Available connector options include:
* LC/ SC/ST/FC/ODC/J599
For a four-fiber assembly, the cable can be terminated with connectors at each end. Breakout length, protective tubing, identification labels, dust caps and cable reel configuration can be customized.
Each finished assembly can be inspected and optically tested before shipment.

Technical Specifications For 4core Tactical Fiber Cable

Parameter	Specification
Cable Type	4 Core Singlmode Outdoor Armored Fiber Optic Cable
Cable Count	4 Core
Fiber Type	Single-Mode(OS2): 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm(OM1/OM2/OM3/OM4/OM5)
Cable Diameter	Φ4.5 ± 0.2 mm，6.0 ± 0.25 mm
Jacket Material	TPU, RoHS-Compliant
Armor Type	Stainless Steel armor
Tensile Strength	≥ 800 N (Short-Term)
	≥ 600 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
TPU Jacket	Rodentproof,UV-Proof
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC (Customizable)
Cable Weight	27.5kg/km

Specifications may be adjusted according to the selected fiber type, cable diameter, connector configuration and application requirements.

Why Use Stainless-Steel Armor?

The flexible spiral steel tube provides additional protection in situations where the cable may be stepped on, compressed, dragged across rough surfaces or exposed to rodents.

The armor is not intended to replace Kevlar as the tensile member. Instead, the two materials work together: Kevlar manages pulling forces, while the steel armor protects the fibers against external mechanical damage.

This construction provides greater mechanical protection than a conventional non-armored tactical fiber cable while retaining the flexibility required for field handling.

Frequently Asked Questions

Can this cable be supplied with ST connectors?

Yes. A four-fiber configuration can be terminated with four ST connectors at each end. LC, SC,FC,ODC,ODVA connector configurations are also available.

Is the cable suitable for repeated winding on a reel?

Yes. The TPU jacket and flexible cable construction are suitable for repeated deployment and retrieval. The reel must have an appropriate drum diameter, and the specified dynamic bending radius must be maintained.

Is this tactical fiber cable rodent-proof?

The stainless-steel armor provides substantially greater resistance to rodent bites than non-armored cable. However, no cable should be described as completely immune to every type of animal damage or installation condition.

Can damaged connector ends be replaced?

In many cases, damaged connectors or breakout sections can be re-terminated by qualified fiber technicians, provided sufficient cable length remains and the optical fibers pass inspection and testing.

Is 1,000 meters the only available length?

No. The cable can be supplied in bulk lengths or manufactured as a pre-terminated assembly according to the required project length.

Custom Configuration

Please provide the following information when requesting a quotation:
Required cable length
Fiber type: OS2, Mulitimode
Bulk cable or pre-terminated assembly
Cable reel requirements
Installation and operating environment
Required labeling and test documentation

Contact HHD Fiber for sample availability, technical confirmation or a customized quotation.

#tactical fiber cable#broadcast fiber cable#military fiber cable#industrial armored fiber cable#harsh environment fiber cable

Contact us for:
- Free Sample Request
- Custom Quote

Email: sales@hhdfiber.com

Or you can Scan the QR code to talk to our sales team directly. We typically respond within a few hours.

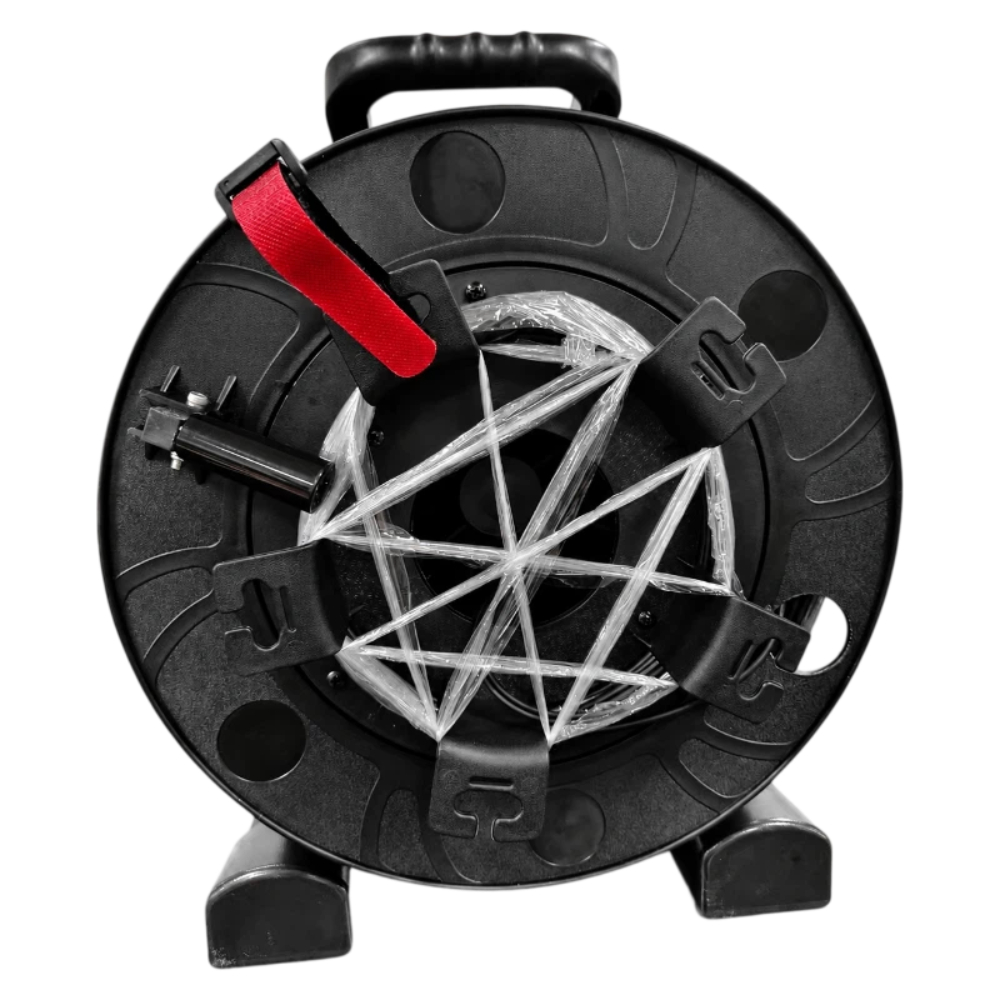

Tactical fiber cable secured on a portable field deployment reel
