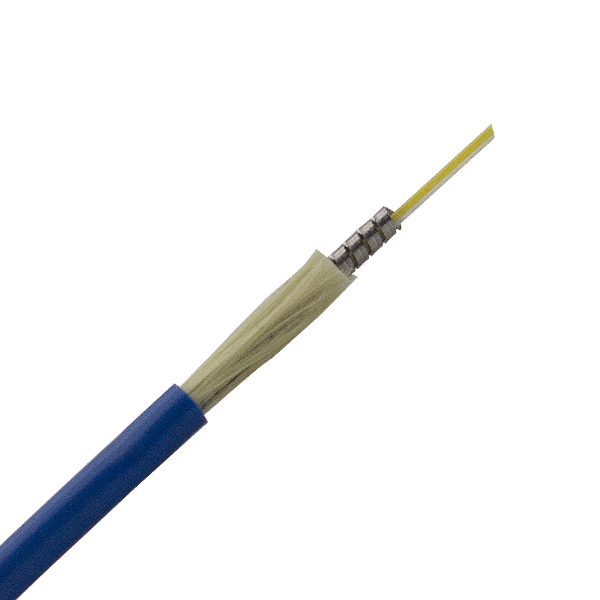

2 core Armored Fiber Optic Cable

2 Core Armored Fiber Optic Cable( TPU Material)

This 2 core armored fiber optic cable is designed for high-performance data transmission in demanding environments. Featuring a robust TPU (Thermoplastic Polyurethane) outer jacket and armored protection, it is suitable for both indoor and outdoor applications, including industrial, military, and emergency scenarios.

2 core Fiber optic cable types:

1.2 in 1 round type amored fiber optic cable

2. zip core armored fiber optic cable

Technical Specifications

Parameter	Specification
Fiber Type	Single-Mode (OS2) / Multi-Mode (OM1, OM2, OM3, OM4)
Core Diameter	Single-Mode: 9/125 µm
	Multi-Mode: 50/125 µm or 62.5/125 µm
Cable Diameter	4.0mm  ± 0.2
Jacket Material	Thermoplastic Polyurethane TPU
Armor Type	Stainless Steel armor
Tensile Strength	≥ 1200 N (Short-Term) if have special reques,let us know.
	≥ 300 N (Long-Term)
Crush Resistance	≥ 3000 N/10 cm
Bending Radius	Dynamic: 20x Cable Diamete
	Static: 10x Cable Diameter
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C
Fire Rating	IEC 60332-1-2 (FlameRetardant)
Water Resistance	|IP67 (Waterproof and Dustproof)
Attenuation	Single-Mode:1310 nm @ 1550 nm
	Multi-Mode: @ 850 nm @ 1300 nm
Bandwidth	Multi-Mode: ≥ 200 MHz·km @ 850
	≥ 500 MHz·km @ 1300 nm
Connector Options	LC, SC, ST, FC, MTP/MPO (Customizable)
Application	Industrial Networks, Emergency Repairs, Outdoor Deployments

Advantages
Durability: TPU jacket and armored design provide superior protection against physical damage and environmental hazards.
Versatility: Suitable for both single-mode and multi-mode applications.
Easy Installation: High flexibility and lightweight design simplify deployment in complex environments.
Reliability: Consistent performance in extreme conditions, ensuring uninterrupted data transmission.

Key Features

1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ，It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;

4.Dual Core Design: Supports both single-mode and multi-mode fiber options.
5.Armored Protection: Enhanced durability with stainless steel armored tube
6.TPU Outer Jacket: Excellent resistance to abrasion, oil, and environmental factors.
7.High Flexibility: Suitable for dynamic and static installations.
8.Wide Temperature Range: Operates reliably in extreme temperatures.

Fiber Optic Armored Cable Applications:

1.Local Area Networks, including FTTH and FTTD
2.CATV System,Live and music events
3.Telecommunication Networks
4.Industrial Networks: Factory automation, robotics, and harsh environment connectivity.
5.Outdoor Deployments: Long-distance fiber optic networks, outdoor broadcasting.
6.Emergency Repairs: Rapid deployment for disaster recovery and network restoration.
7.Camera
8.Military and Defense: Tactical field communications, mobile command centers.
9.Military and Defense: Tactical field communications, mobile command centers.

Ordering Information
Product Code: 2C-ASM-TPU (Single-Mode)  2C-AMM-TPU (Multi-MoWhy Choose TPU Jacket Armored Fiber Cables for Harsh Environments?de)
Standard Length: 500 m, 1000 m (Custom lengths available)
Packaging: Reel or coil packaging with protective cover.

Compliance and Certifications
RoHS Compliance: Meets Restriction of Hazardous Substances Directive.
REACH Compliance: Adhering to strict regulations on chemical substances to protect human health and the environment.
UL Compliance: Meeting the rigorous safety and performance standards required for European and North American markets.
