Heat Shrink Fiber Optic Fusion Splice Protection Sleeve 60mm

Single-fiber, ribbon-fiber and flame-retardant fusion splice protection sleeves in 25-60 mm lengths. Custom dimensions and bulk packaging available.

HHD Fiber supplies fiber optic splice protection sleeves for protecting and mechanically reinforcing fusion-spliced optical fibers. These products are also known as fusion splice protection sleeves, heat-shrink splice sleeves and fiber splice protectors.

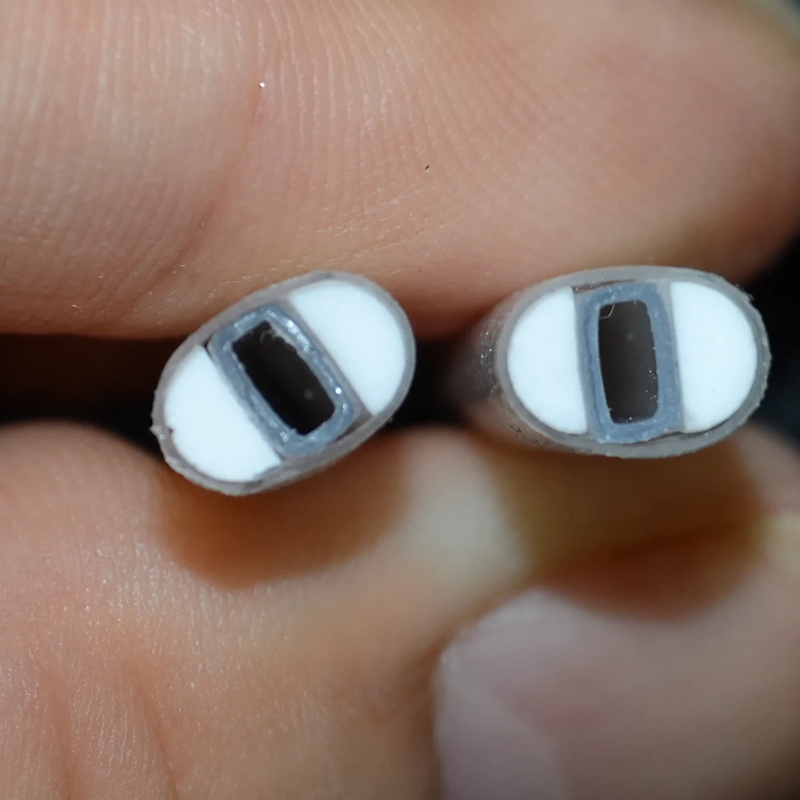

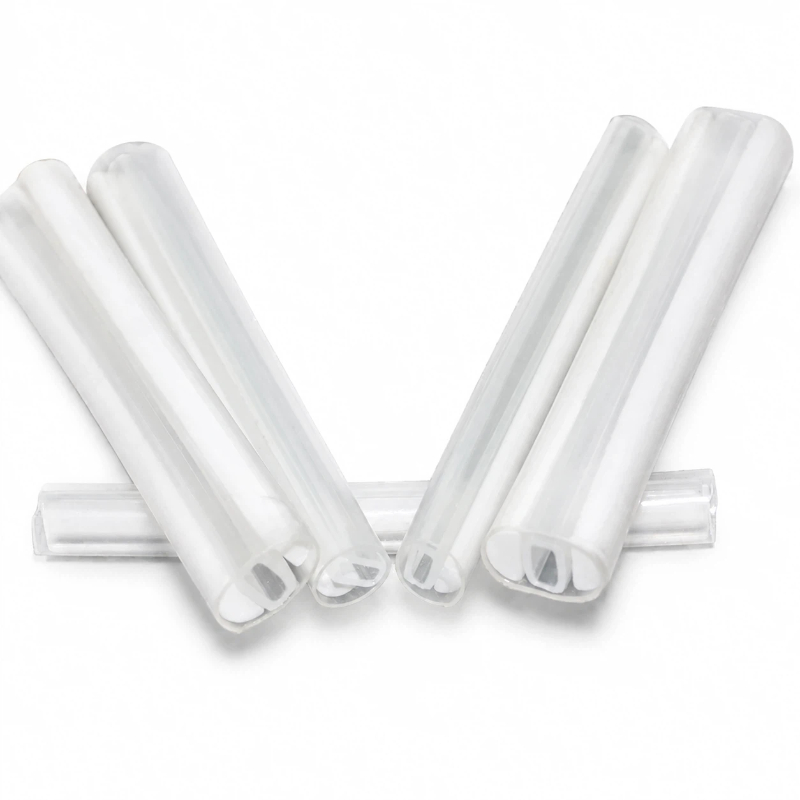

Our product range includes stainless-steel strength-member sleeves for single-fiber splices, ceramic-strength-member sleeves for 4-, 6-, 8- and 12-fiber ribbon splices, and optional single-rod or double-rod flame-retardant designs.

Sleeve lengths from 25 mm to 60 mm and multiple recovered diameters are available for different splice trays, fiber constructions and installation requirements.

Product Range

Single-Fiber Fusion Splice Protection Sleeves

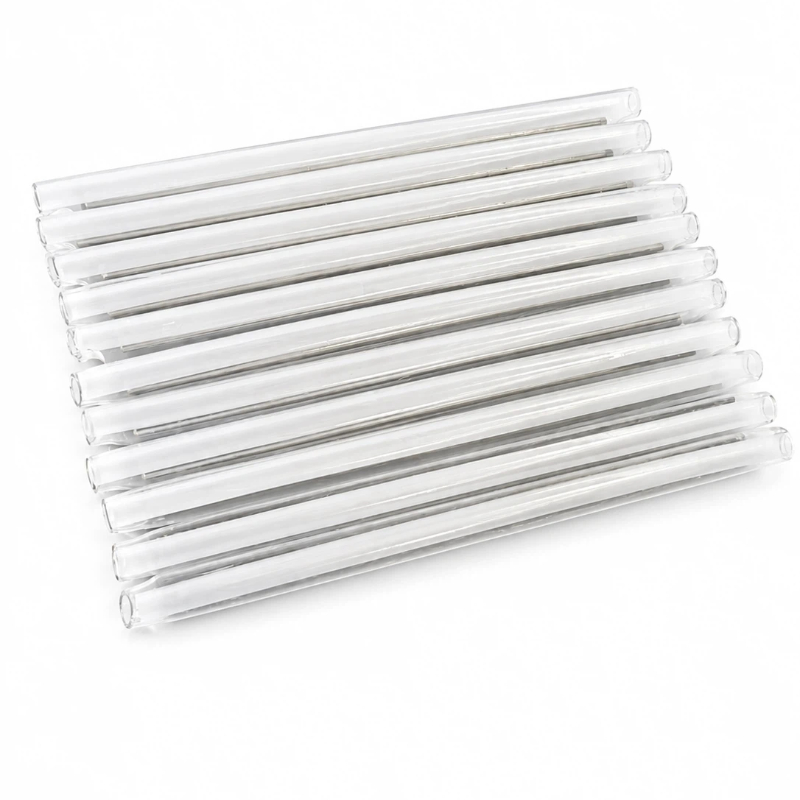

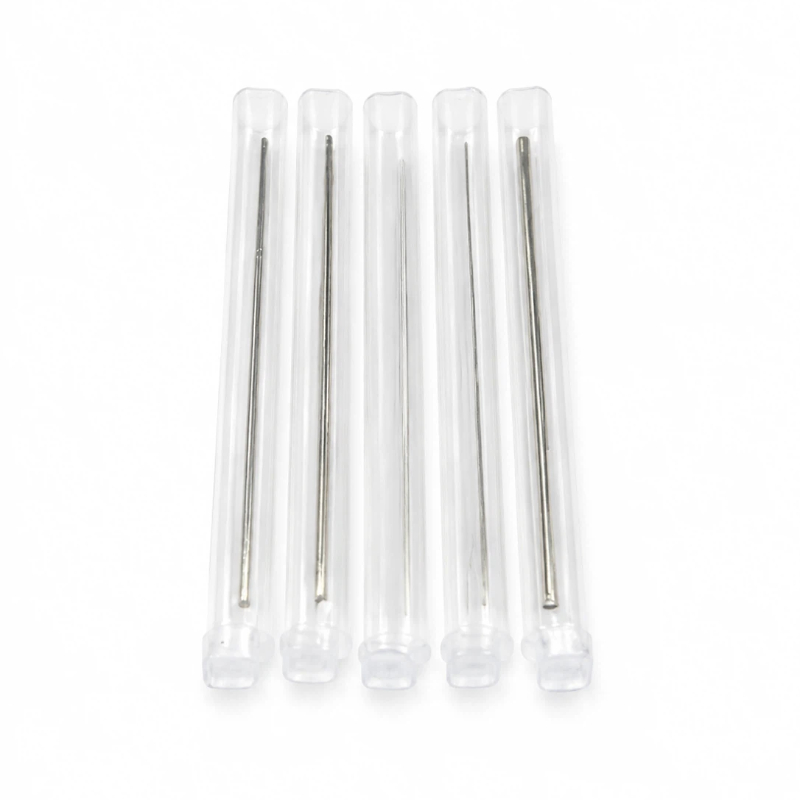

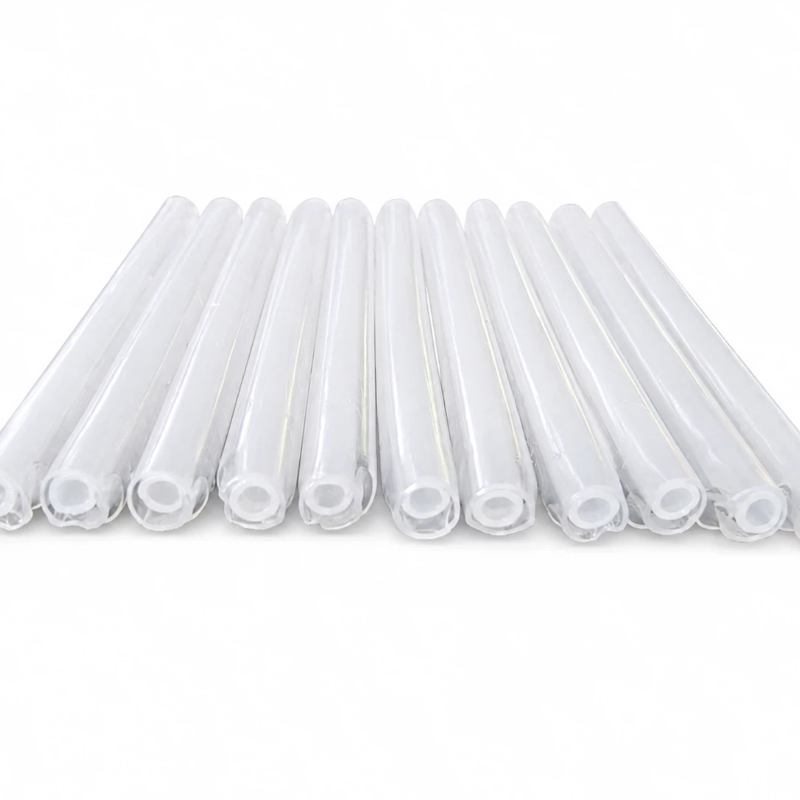

Single-fiber sleeves use a hot-melt adhesive inner tube, heat-shrinkable outer tube and stainless-steel strength member to support and protect the fusion-spliced area.

Fiber Optic Fusion Splice Protection Sleeves specification

Specifications	Casing length		Hot melt pipe		Needle		package
	Size after contractio (mm)	length(mm)	id(mm)	length (mm)	DIA(mm)	length (mm)
1.5*60mm	2.9-3.08	60±2	≥1.1	60±2	1.5±0.05	55±1	10 pcs/bag, 100 pcs/bag or customised
1.5*50mm	2.9-3.08	50±2	≥1.1	50±2	1.5±0.05	45±1	10 pcs/bag, 100 pcs/bag or customised
1.5*45mm	2.9-3.08	45±2	≥1.1	45±2	1.5±0.05	40±1	10 pcs/bag, 100 pcs/bag or customised
1.5*40mm	2.9-3.08	40±2	≥1.1	40±2	1.5±0.05	35±1	10 pcs/bag, 100 pcs/bag or customised
1.5*25mm	2.9-3.08	25±2	≥1.1	25±2	1.5±0.05	21±1	10 pcs/bag, 100 pcs/bag or customised
1.2*60mm	2.6-2.77	60±2	≥1.1	60±2	1.2±0.05	55±1	10 pcs/bag, 100 pcs/bag or customised
1.2*45mm	2.6-2.77	45±2	≥1.1	45±2	1.2±0.05	40±1	10 pcs/bag, 100 pcs/bag or customised
1.2*40mm	2.6-2.77	40±2	≥1.1	40±2	1.2±0.05	35±1	10 pcs/bag, 100 pcs/bag or customised
1.2*30mm	2.6-2.77	30±2	≥1.1	30±2	1.2±0.05	26±1	10 pcs/bag, 100 pcs/bag or customised
1.2*25mm	2.6-2.77	25±2	≥1.1	25±2	1.2±0.05	21±1	10 pcs/bag, 100 pcs/bag or customised
1.0*60mm	2.2-2.37	60±2	≥1.1	60±2	1.0±0.05	55±1	10 pcs/bag, 100 pcs/bag or customised
1.0*45mm	2.2-2.37	45±2	≥1.1	45±2	1.0±0.05	40±1	10 pcs/bag, 100 pcs/bag or customised
1.0*40mm	2.2-2.37	40±2	≥1.1	40±2	1.0±0.05	35±1	10 pcs/bag, 100 pcs/bag or customised
0.7*40mm	1.7	40±2	≥1.1	40±2	0.7±0.05	39±0.05	10 pcs/bag, 100 pcs/bag or customised
0.7*45mm	1.7	45±2	≥1.1	45±2	0.7±0.05	44±0.05	10 pcs/bag, 100 pcs/bag or customised
0.7*50mm	1.7	50±2	≥1.1	50±2	0.7±0.05	49±0.05	10 pcs/bag, 100 pcs/bag or customised
0.5*40mm	1.3	40±2	0.4 ±0.2	40±2	0.5±0.05	39±0.05	10 pcs/bag, 100 pcs/bag or customised
0.5*30mm	1.3	30±2	0.4 ±0.2	30±2	0.5±0.05	29±0.05	10 pcs/bag, 100 pcs/bag or customised
0.5*25mm	1.3	25±2	0.4 ±0.2	25±2	0.5±0.05	24±0.05	10 pcs/bag, 100 pcs/bag or customised

Ribbon fiber splice protection sleeve 12 fiber ribbon splice sleeve, 8 fiber ribbon splice sleeve, ceramic splice protection sleeve 规格 Specifications 套管长度/Casing length 钢针/Needle 热缩管壁厚/The wall thickness of the heat shrinkable tube （mm) 热熔管壁厚 /Wall thickness of hot melt pipe(mm) 阻燃/Flame retardant 收缩后尺寸 Size after contraction(mm) 长度length(mm) 直径/DIA(mm) 数量/QTY 1.0*45mm DIA 3.3±0.25 45±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*50mm DIA 3.3±0.25 50±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*60mm DIA 3.3±0.25 60±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*45mm DIA 3.3±0.25 45±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*50mm DIA 3.3±0.25 50±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*60mm DIA 3.3±0.25 60±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 不阻燃/Non flame retardant 1.0*45mm DIA 3.3±0.25 45±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 阻燃/Flame retardant 1.0*50mm DIA 3.3±0.25 50±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 1.0*60mm DIA 3.3±0.25 60±2 1.0±0.05 单针/Single needle 0.2±0.05 0.3±0.05 阻燃/Flame retardant 1.0*45mm DIA 3.3±0.25 45±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 阻燃/Flame retardant 1.0*50mm DIA 3.3±0.25 50±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 阻燃/Flame retardant 1.0*60mm DIA 3.3±0.25 60±2 1.0±0.05 双针/Double needle 0.2±0.05 0.3±0.05 阻燃/Flame retardant

12 fiber ribbon splice sleeve, 8 fiber ribbon splice sleeve, ceramic splice protection sleeve

Flame-retardant performance and applicable test documentation should be confirmed for the selected model before ordering.

How to Select the Correct Splice Protection Sleeve

Consider the following information when selecting a sleeve:

Single-fiber or ribbon-fiber splice
Sleeve holder and splice-tray dimensions
Required sleeve length
Recovered outer diameter
Strength-member diameter and material
Single-rod or double-rod construction
Flame-retardant requirement
Required quantity and packaging
A 40 mm sleeve may be preferred for compact splice trays, while a 60 mm sleeve provides a longer reinforced section. The correct choice depends on the splice tray, fiber preparation length and fusion-splicer heater configuration.

Typical Applications

FTTH and FTTx access networks
Telecom fiber splice closures
Fiber distribution boxes and ODFs
Indoor and outdoor fiber splice trays
Network installation, repair and maintenance
Campus and metro fiber networks
Ribbon-fiber and mass-fusion splicing
Optical component and compact splice-packaging applications
Why Choose HHD Fiber
Single-fiber, ribbon-fiber and flame-retardant product options
Sleeve lengths from 25 mm to 60 mm
Multiple recovered diameters for different tray designs
Stainless-steel and ceramic strength-member configurations
Bulk packaging for distributors, contractors and equipment manufacturers
Custom dimensions and packaging can be discussed for volume projects
Frequently Asked Questions
What does 1.2 x 60 mm mean?
For this product series, 1.2 mm refers to the stainless-steel strength-member diameter and 60 mm refers to the sleeve length. The corresponding recovered sleeve diameter is 2.6-2.77 mm.

Should I choose a 40 mm or 60 mm splice protection sleeve?

Frequently Asked Questions

What does 1.2 x 60 mm mean?
For this product series, 1.2 mm refers to the stainless-steel strength-member diameter and 60 mm refers to the sleeve length. The corresponding recovered sleeve diameter is 2.6-2.77 mm.

Should I choose a 40 mm or 60 mm splice protection sleeve?

The correct length depends on the splice-tray holder, prepared fiber length and heater configuration. Please check the equipment and tray dimensions before ordering.

Do you supply sleeves for ribbon-fiber splices?

Yes. Ceramic-strength-member sleeves are available for 4-, 6-, 8- and 12-fiber ribbon splices in selected 40 mm and 60 mm configurations.

Are flame-retardant versions available?

Yes. Selected 45 mm, 50 mm and 60 mm single-rod or double-rod models are available in flame-retardant configurations. Required standards and supporting test documentation should be confirmed before ordering.
